Window Cleaning Robot

This is an automated glass surface cleaning robot designed for vertical window and smooth surface maintenance using motorized movement and suction-based adhesion. It operates through a dual-function vacuum suction system, which generates negative pressure to secure the device onto glass surfaces while enabling controlled movement.

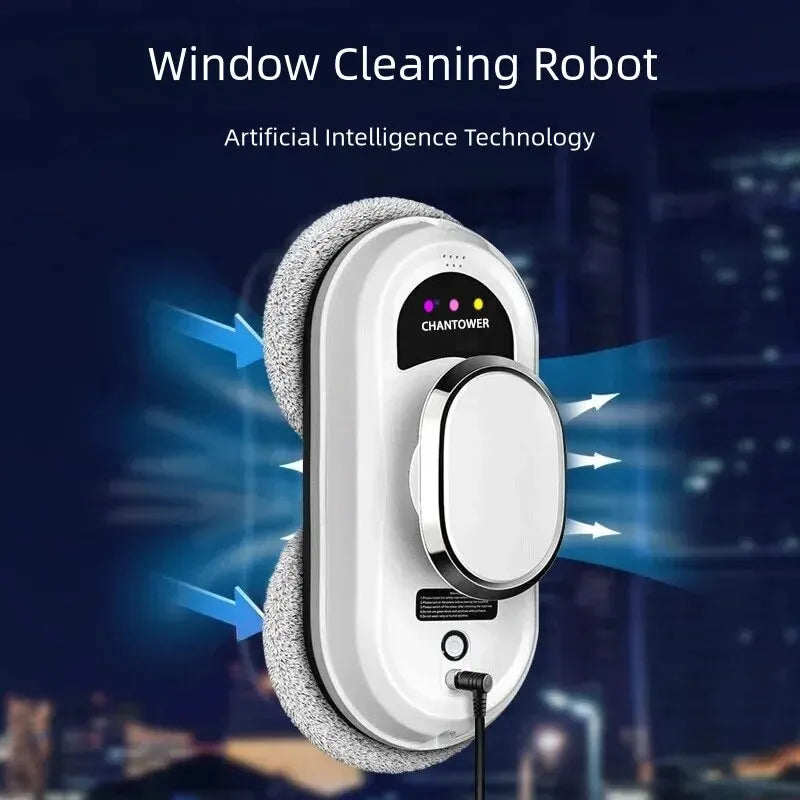

The device uses an internal high-speed airflow motor, which creates continuous suction force between the robot base and the glass surface. This vacuum adhesion system ensures stable positioning during operation, allowing the unit to move across vertical planes without detachment.

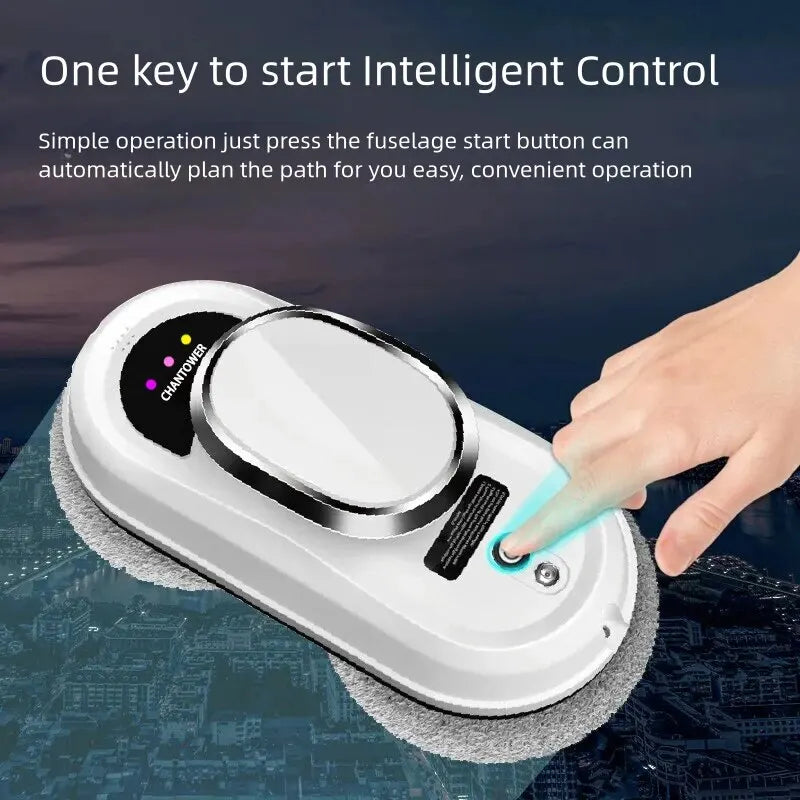

Movement is controlled by a microprocessor-based navigation system, which coordinates directional wheel motors to guide the cleaning path. The system follows pre-programmed or remote-controlled routes depending on operation mode, ensuring full surface coverage.

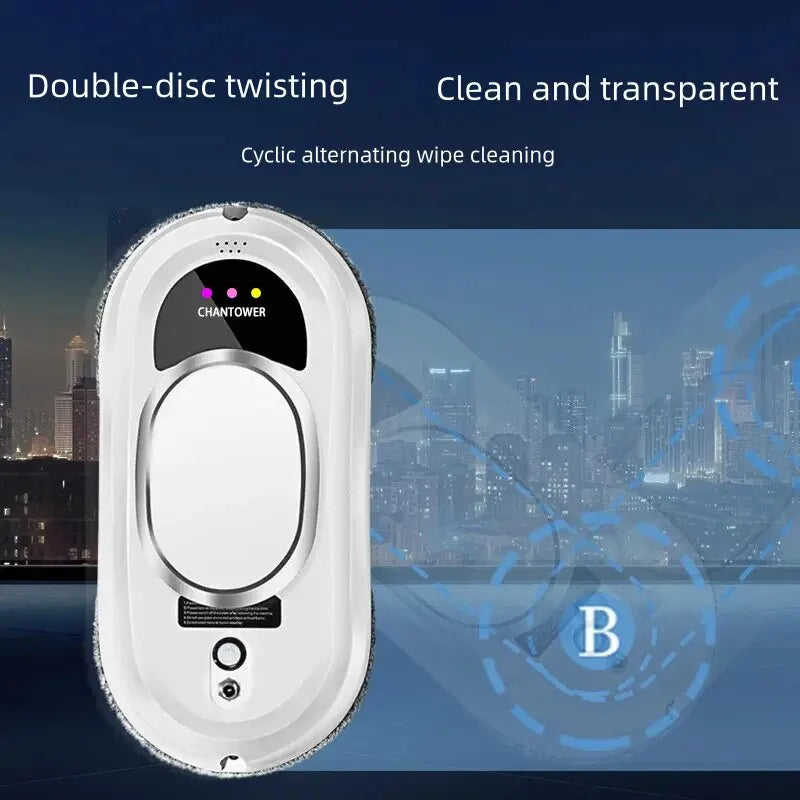

The cleaning mechanism includes microfiber wiping pads, which are mounted on rotating or fixed cleaning plates. These pads are designed to remove dust, smudges, and light residue through frictional contact during movement.

Key structural and functional components include:

• Vacuum suction adhesion system for vertical surface grip
• Dual motor drive system for directional movement control
• Microfiber cleaning pads for surface wiping and polishing
• Built-in safety tether cord for anti-fall protection

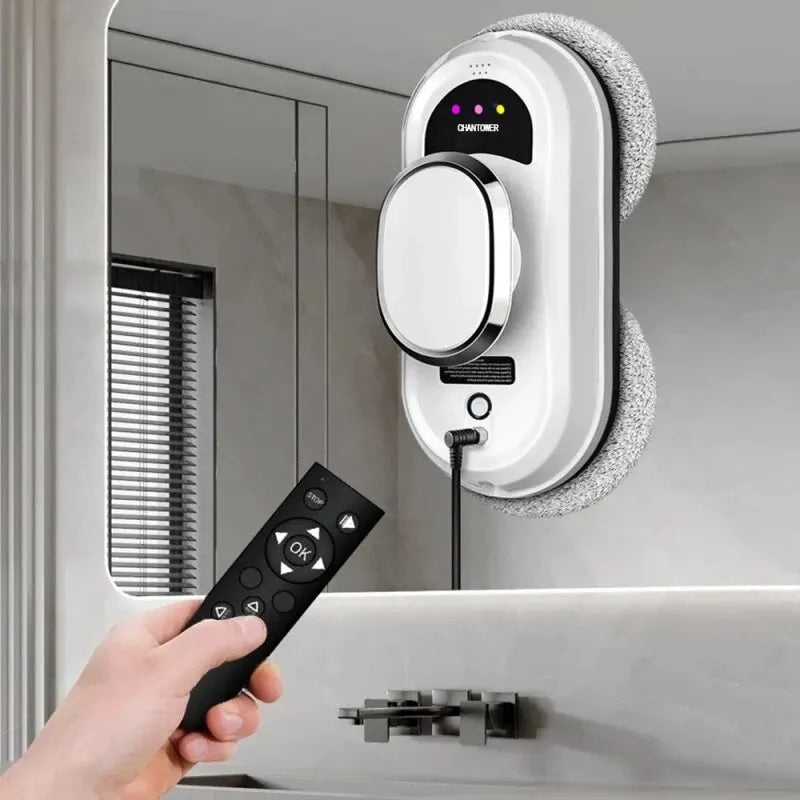

• Remote control system for manual navigation input

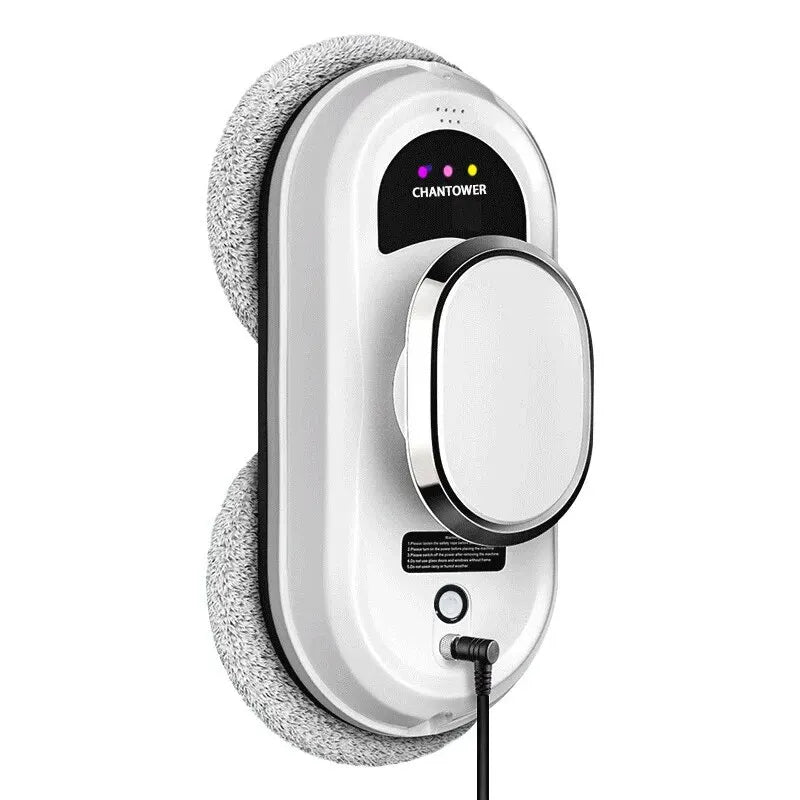

The outer shell is constructed from ABS plastic polymer housing, engineered for lightweight structure and impact resistance while maintaining internal airflow sealing integrity. Internal components are isolated to prevent dust and moisture interference with the motor system.

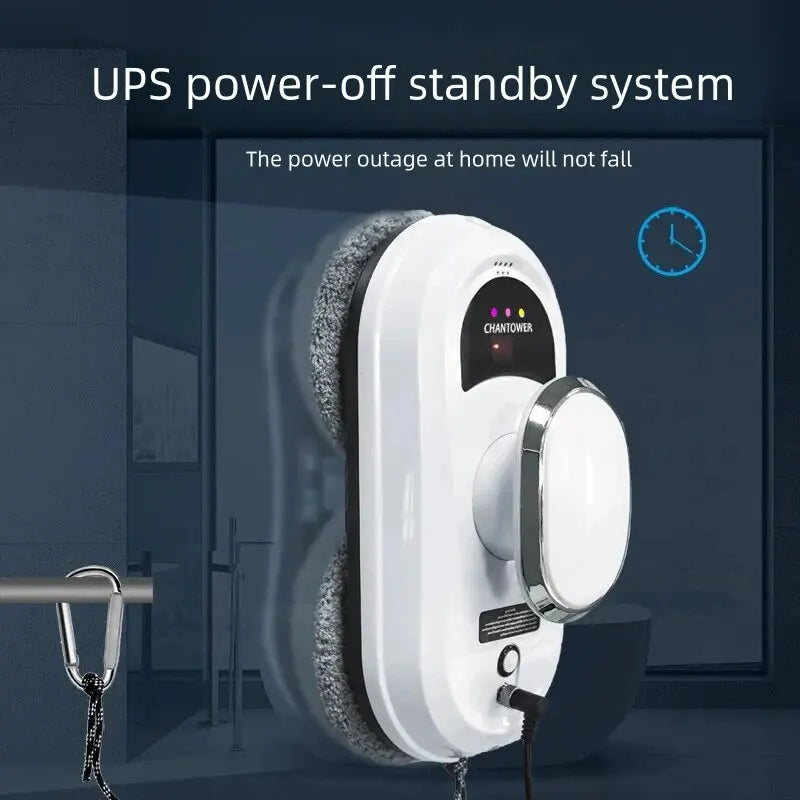

The safety system includes a backup tether line, which acts as a mechanical fail-safe in case of suction loss, preventing accidental dropping from elevated surfaces.

This device is designed for automated glass cleaning applications, utilizing vacuum adhesion, motorized navigation, and microfiber friction cleaning to reduce manual effort in maintaining vertical transparent surfaces.
