Automatic Soap Dispenser

This is an infrared sensor–activated liquid dispensing system designed for contact-free soap delivery in hygiene-sensitive environments. It operates using an infrared proximity detection module, which triggers the internal pump mechanism when a hand or object is placed within the sensing range.

The dispensing mechanism is driven by a miniature electric pump system, which draws liquid from the internal reservoir and releases a controlled measured dose through the output nozzle. This ensures consistent flow output with each activation cycle.

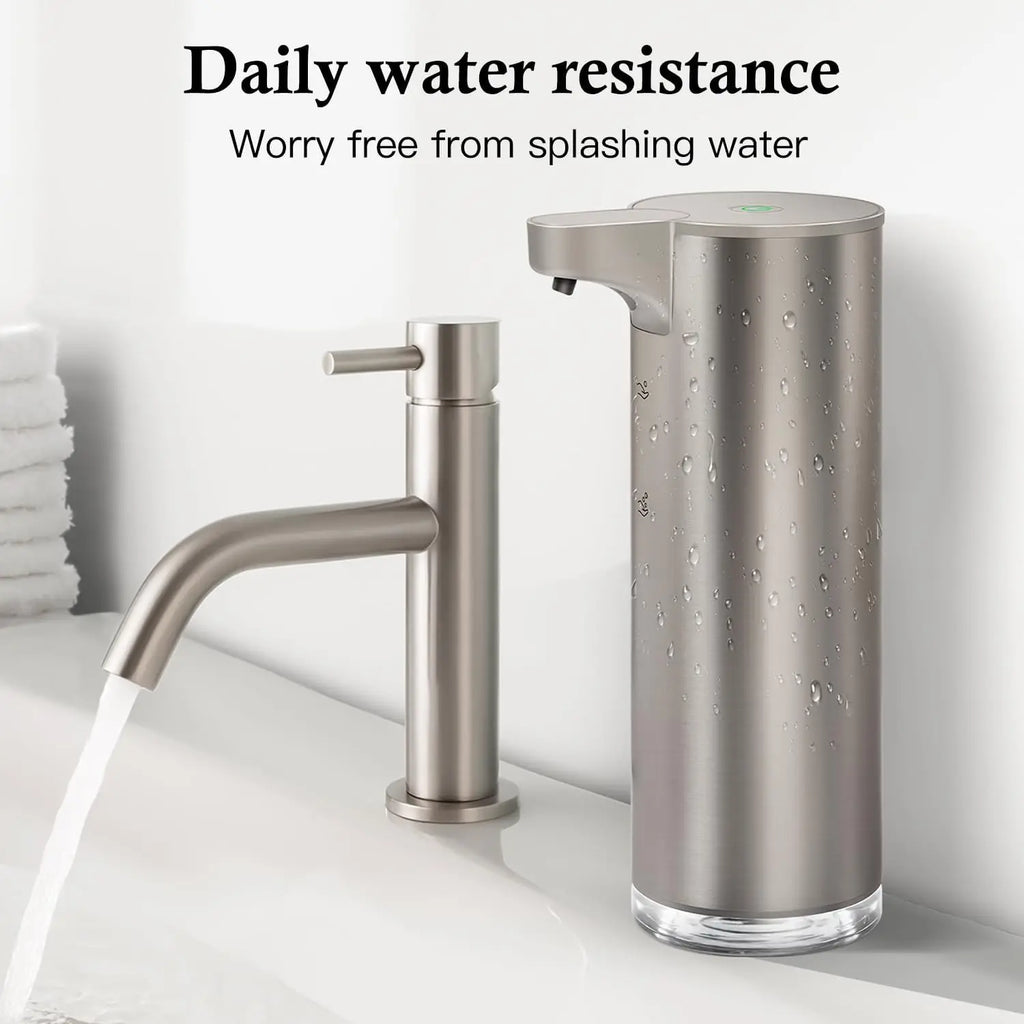

The outer housing is constructed from stainless steel combined with ABS plastic internal components, providing structural durability, corrosion resistance, and protection for the electronic control system. The stainless steel exterior is resistant to moisture exposure and surface oxidation.

Key structural and functional components include:

• Infrared motion sensor for automatic activation
• Electric pump-based liquid dispensing system

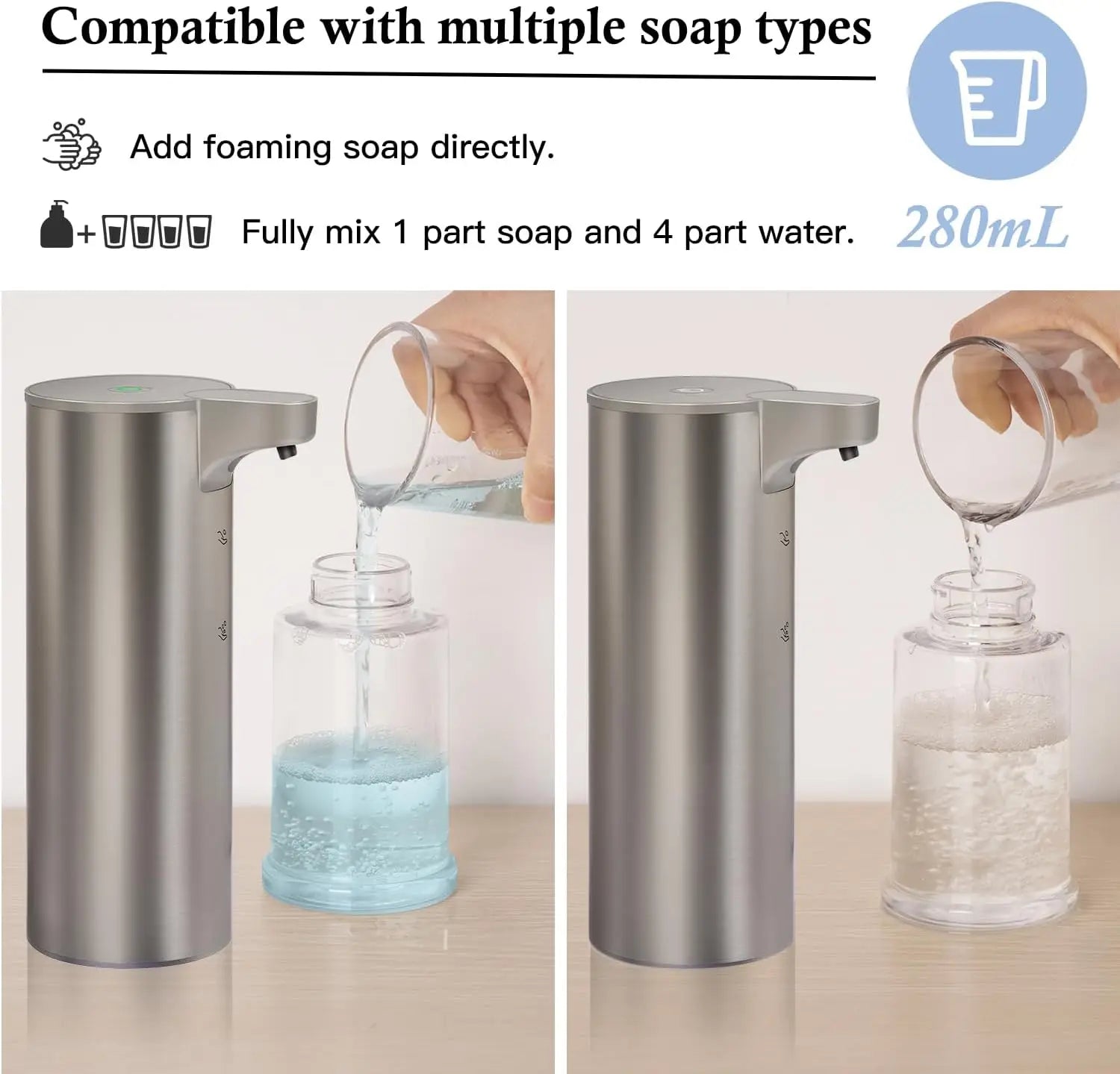

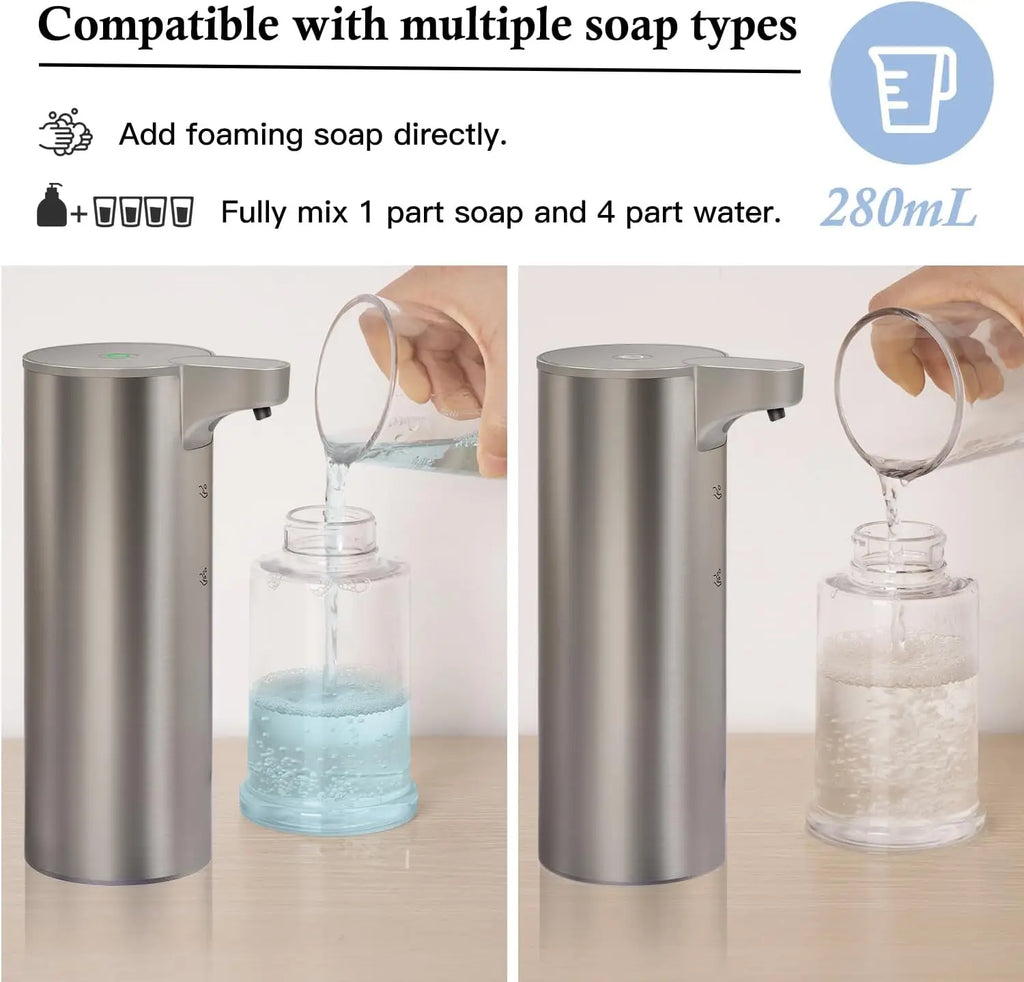

• Internal refillable liquid storage tank
• LED lighting indicator for operation feedback

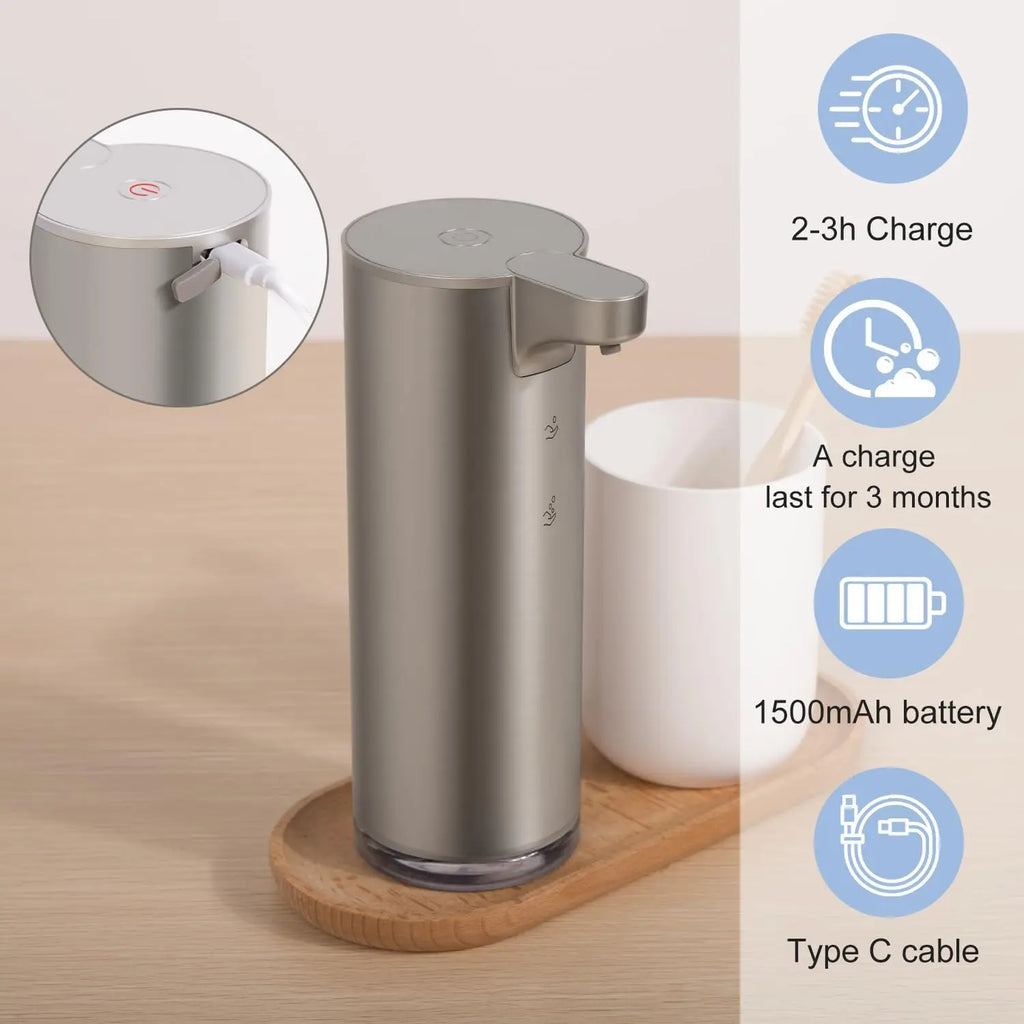

• Rechargeable power system or battery-operated control unit

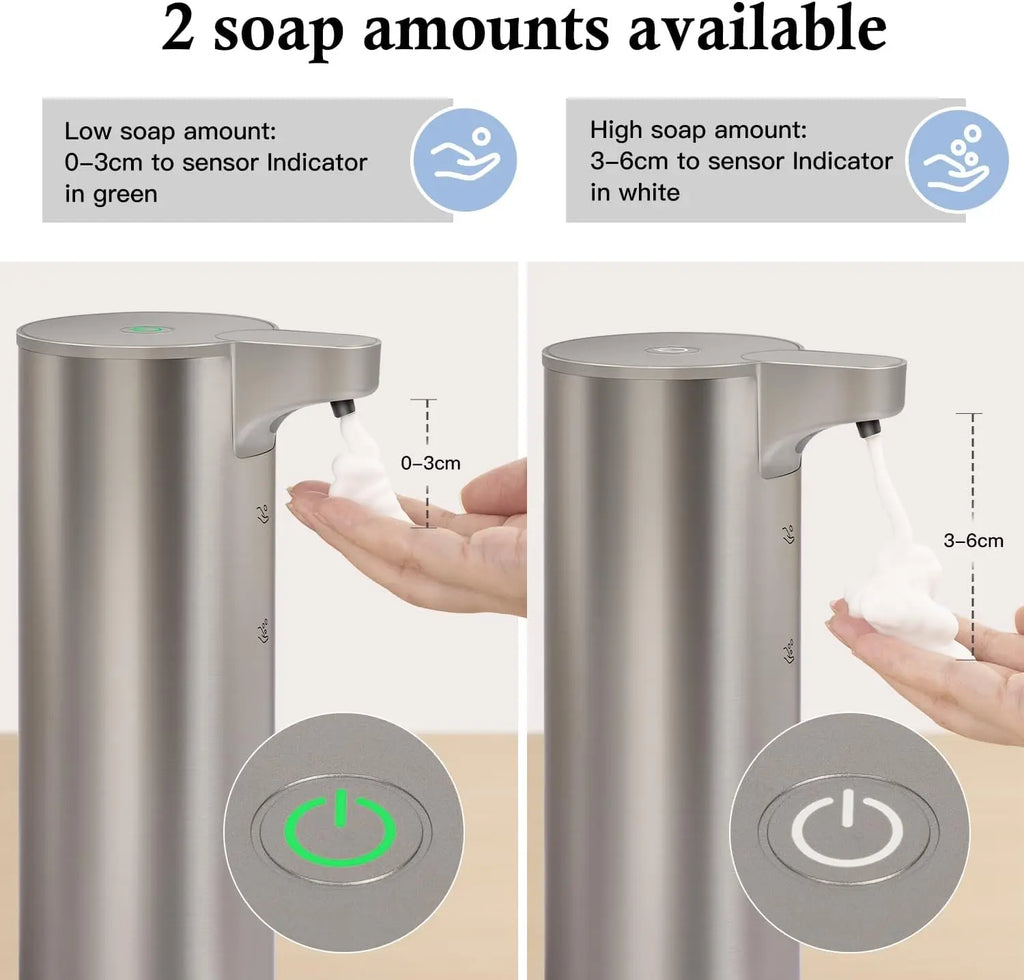

The internal reservoir is designed as a sealed fluid chamber, preventing leakage and maintaining stable pressure for consistent dispensing performance. The pump system is calibrated to deliver a controlled volume of liquid per activation cycle, reducing waste and over-dispensing.

The LED lighting module provides visual feedback during operation, typically indicating activation status or power condition. The electronic components are isolated within a sealed compartment to protect against moisture intrusion.

This device is intended for automated liquid soap dispensing applications, utilizing sensor-based activation and controlled pumping mechanics to eliminate direct contact and improve hygiene control in daily use environments.
