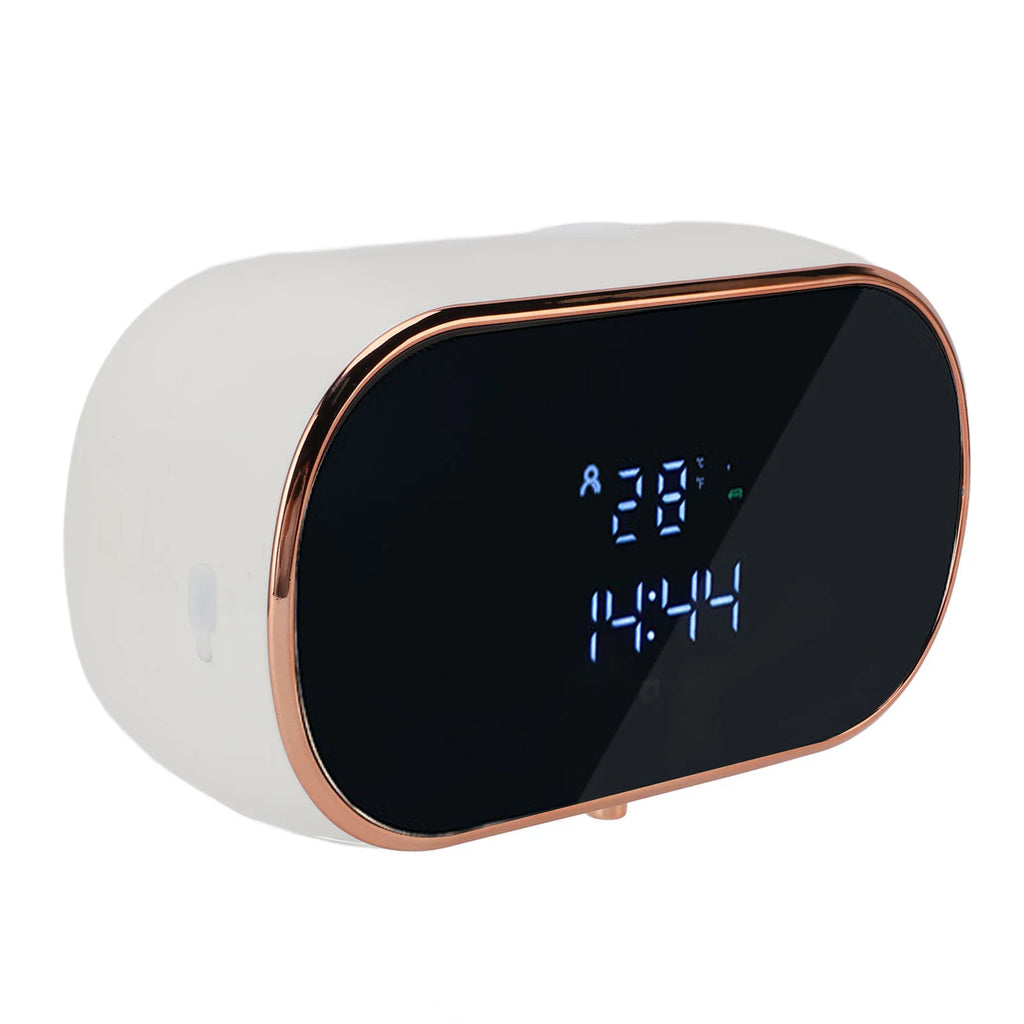

Foaming Soap Dispenser

This is an automatic touchless foaming liquid dispensing system designed for controlled soap delivery through sensor-based activation. It operates using an infrared proximity sensor module, which detects hand presence and triggers a built-in micro-pump mechanism for liquid output.

The dispensing system is engineered to convert liquid soap into foam through an internal air–liquid mixing chamber, where air is injected and blended with liquid soap before release. This process produces a pre-foamed output, improving coverage efficiency and reducing liquid consumption per use.

The device includes a 350ml internal refill reservoir, constructed from transparent or semi-transparent polymer material for level visibility and easy monitoring. The reservoir is sealed to prevent leakage and maintain stable internal pressure during pumping cycles.

Key structural and functional components include:

• Infrared motion sensor for touchless activation
• Micro electric pump system for liquid extraction
• Air–liquid mixing chamber for foam generation
• 350ml refillable internal storage tank
• USB rechargeable lithium battery power system

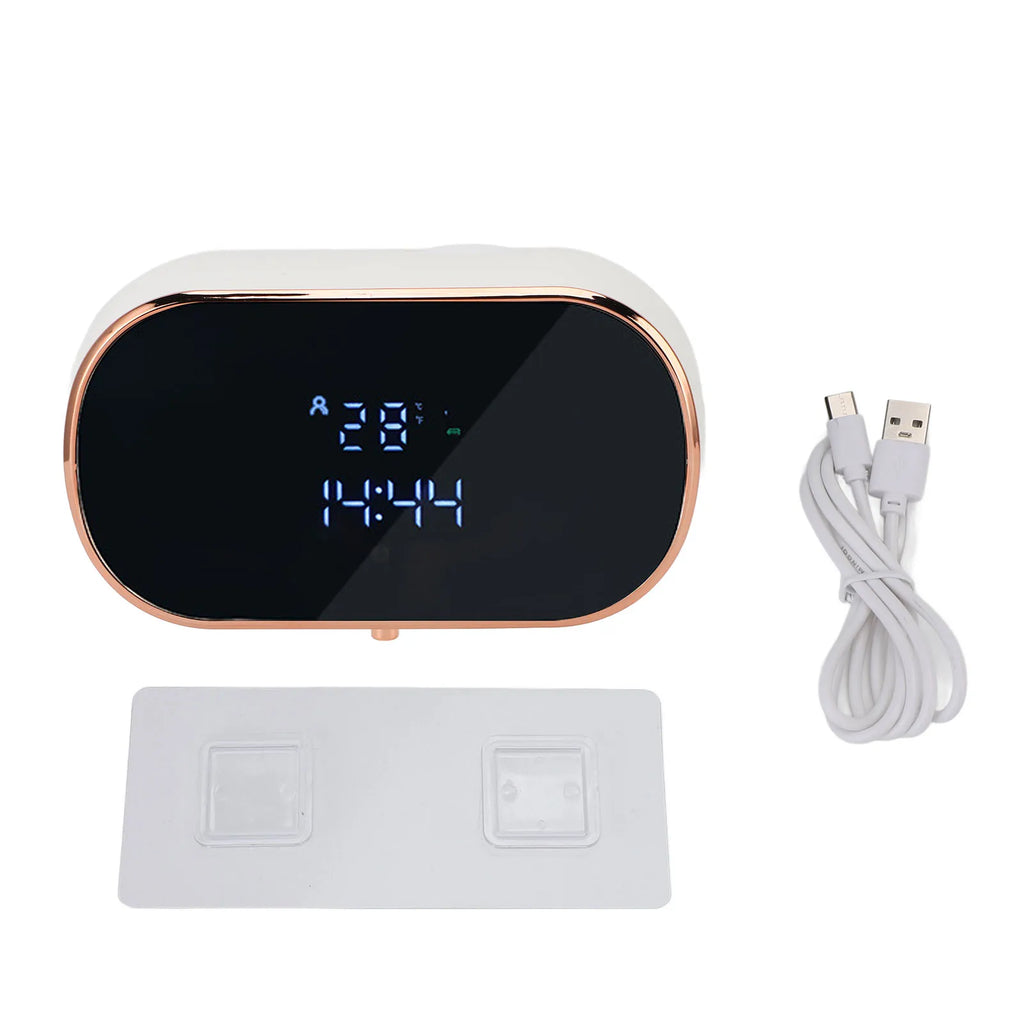

• Wall-mounted adhesive or bracket installation design

The housing is constructed from ABS plastic or polycarbonate material, selected for impact resistance, moisture tolerance, and lightweight durability. Internal electronic components are isolated within a sealed compartment to protect against water and humidity exposure.

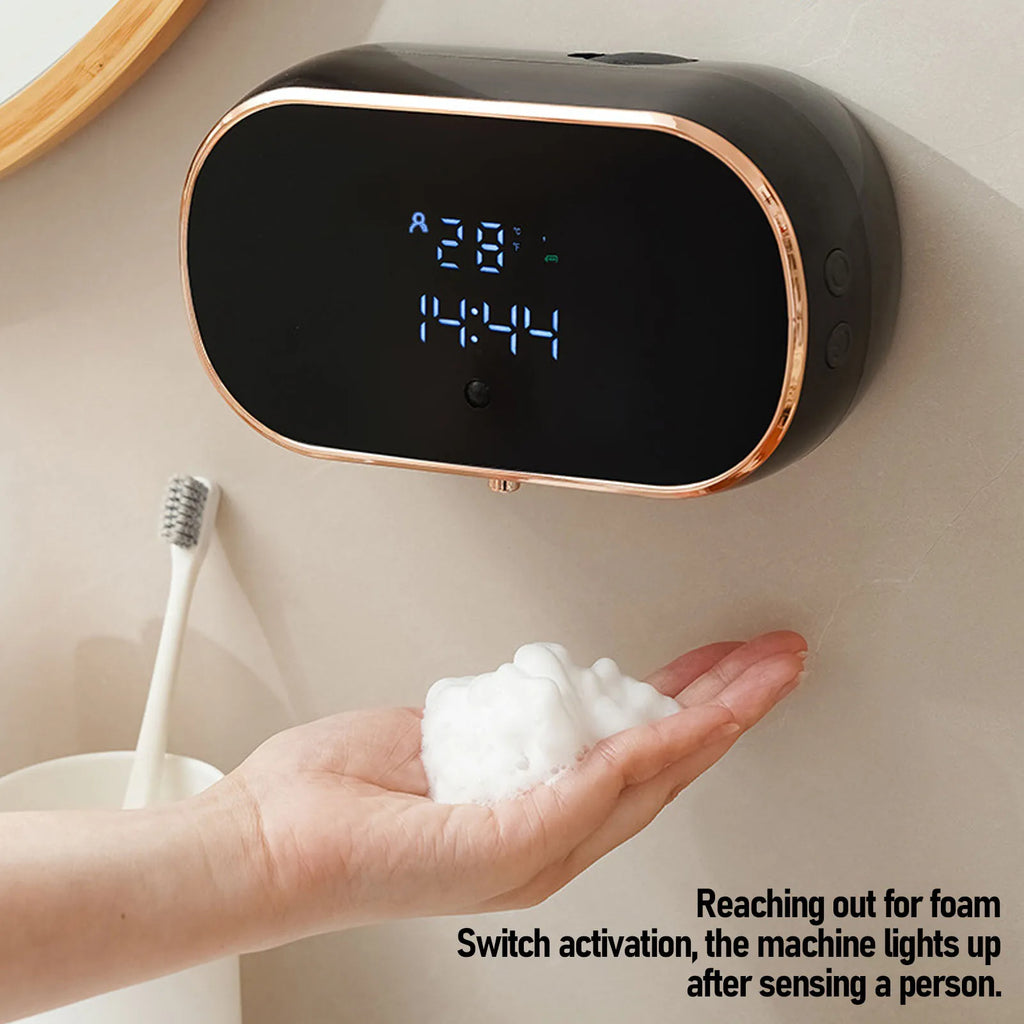

The pump system is calibrated to dispense a controlled amount of foamed soap per activation cycle, ensuring consistent output and reducing waste. The touchless activation system minimizes physical contact, supporting hygienic usage conditions.

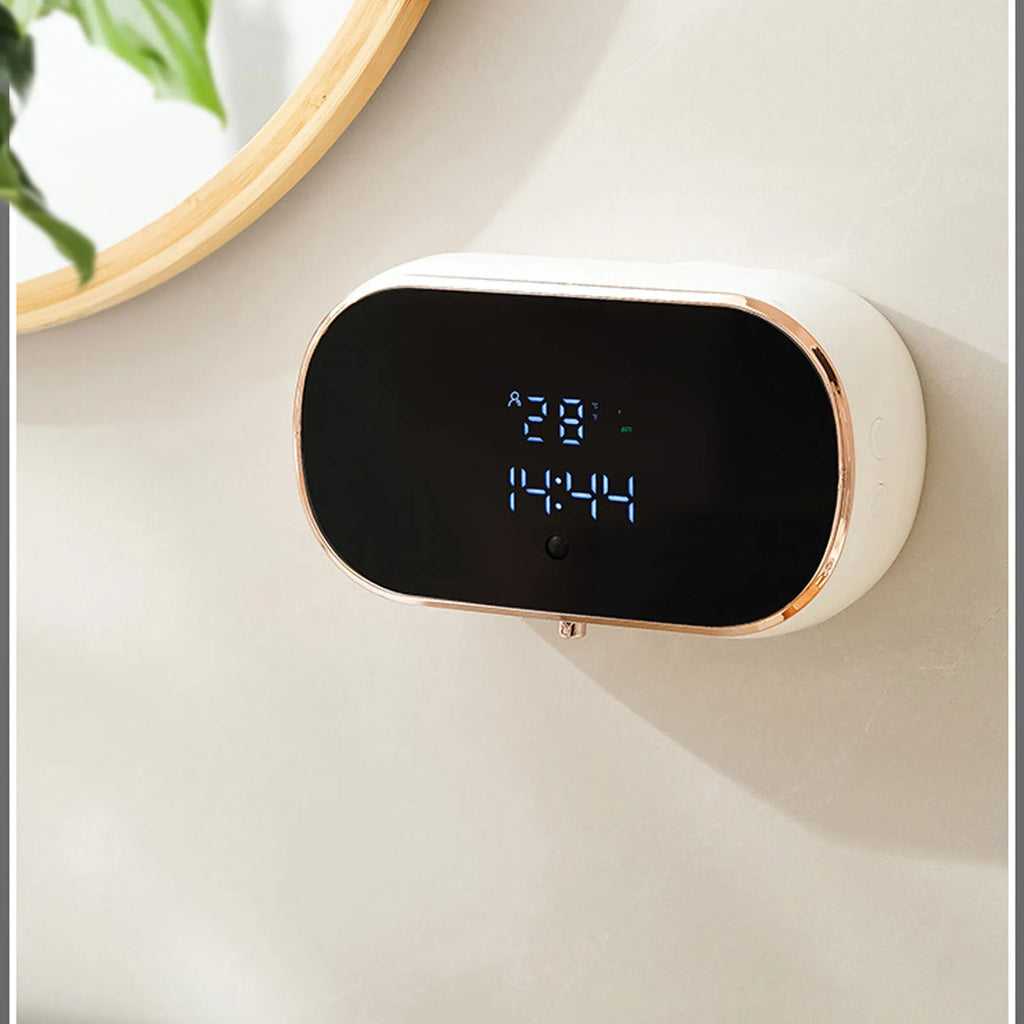

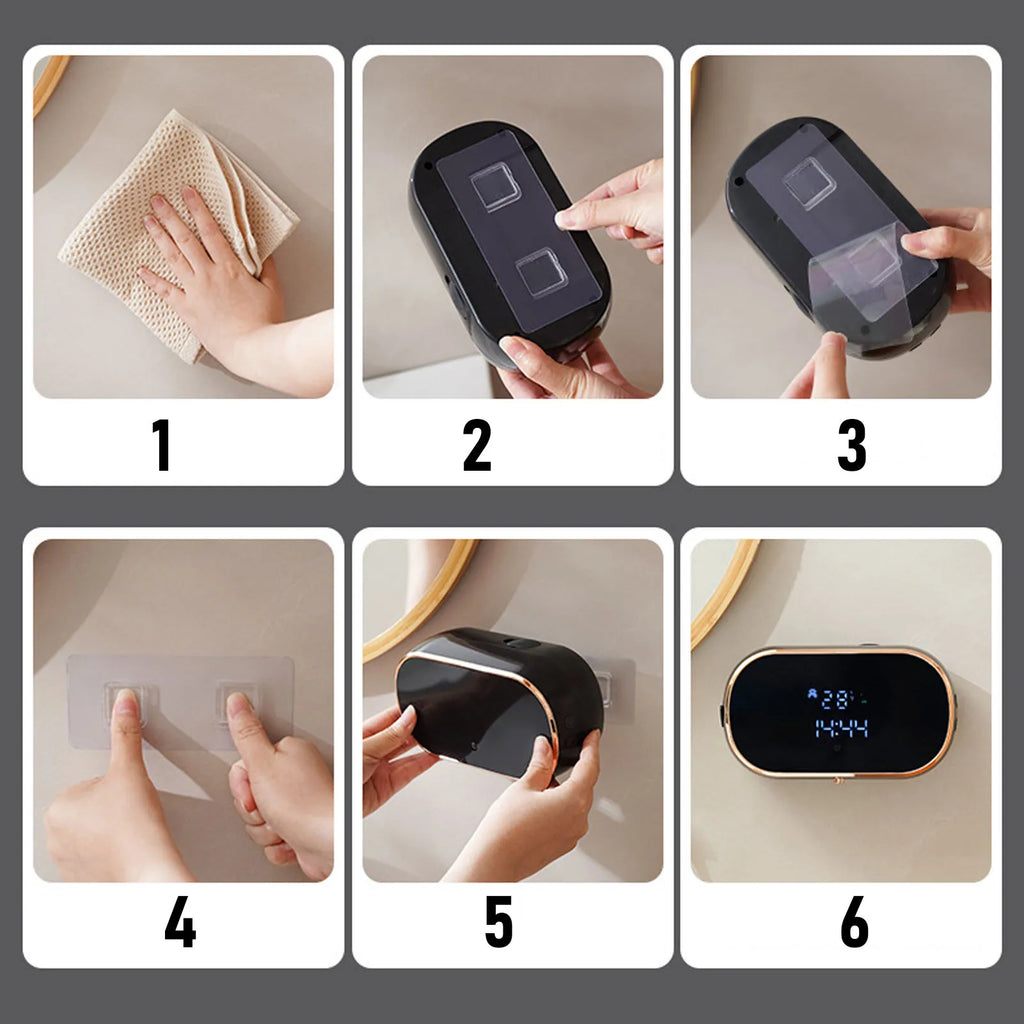

The mounting system uses a strong adhesive backing or wall bracket structure, enabling installation on smooth surfaces without drilling. The design supports stable vertical placement and easy removal for maintenance or refilling.

This device is intended for automated hygiene applications, combining sensor-based activation with foam generation technology to provide efficient and controlled handwashing liquid dispensing.
